Low pass LC Filter Application

A Low Pass LC Filter is an electronic circuit made using an inductor (L) and a capacitor (C) that allows low-frequency signals to pass through while blocking or attenuating high-frequency signals.

Basic Concept:

• “Low Pass” means it lets low frequencies through and filters out high frequencies.
• “LC” refers to the inductor (L) and capacitor (C) used in the filter.
• It’s a passive filter, meaning it doesn’t require an external power source.

How Low Pass LC Filter Works:

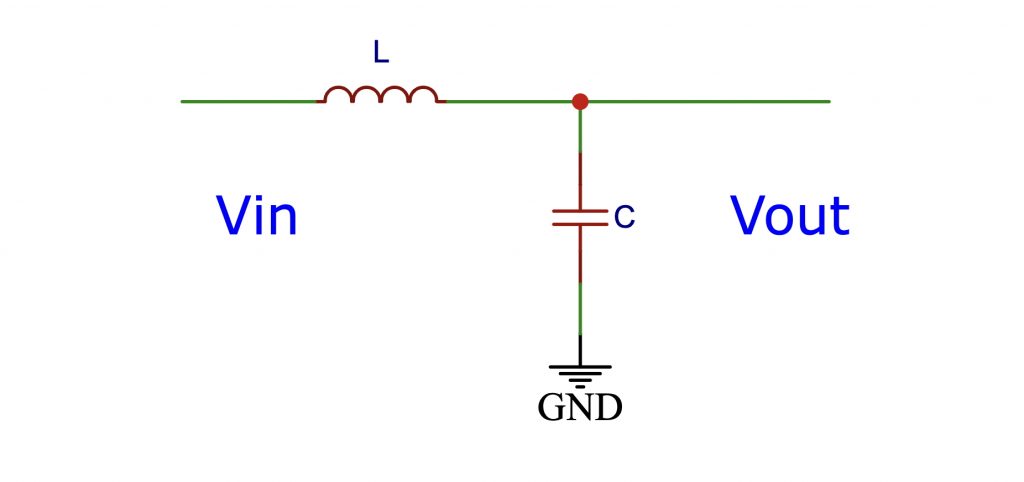

In a basic LC low-pass filter:

• The inductor blocks high-frequency signals (it has higher impedance at high frequencies).
• The capacitor shunts high-frequency signals to ground (it has lower impedance at high frequencies).

So, together:

• Low frequencies go to the output.
• High frequencies get blocked or grounded.

Applications:

• Power supply filtering
• Audio electronics (e.g., tone control)
• RF circuits to reduce high-frequency noise
• Data communication (like filtering CAN/LIN bus lines)
• Analog signal conditioning
