BOX HEADER 2.54 DIP STRAIGHT THT
STRAIGHT THT BOX HEADERS (2.54 mm)
Electrical Properties
- Current Rating: 3.0 A
- Insulation Resistance: 1000 MΩ
- Contact Resistance: 20 mΩ
- Dielectric Withstanding Voltage: 500 V (AC)
Material Properties
- Housing Material: High Temperature ThermoPlastic, PBT(Black),
- Insulator Flammability Rating: UL94 V-0
- Contact Material: Brass
- Contact Plating: Gold Plated over Nickel
- Contact Type: Stamped
General Information
- Order Code: MTBHxxST254
- Durability: 500 mating cycles
- Operating Temperature: -40 up to +105°C
- Packaging: Tray

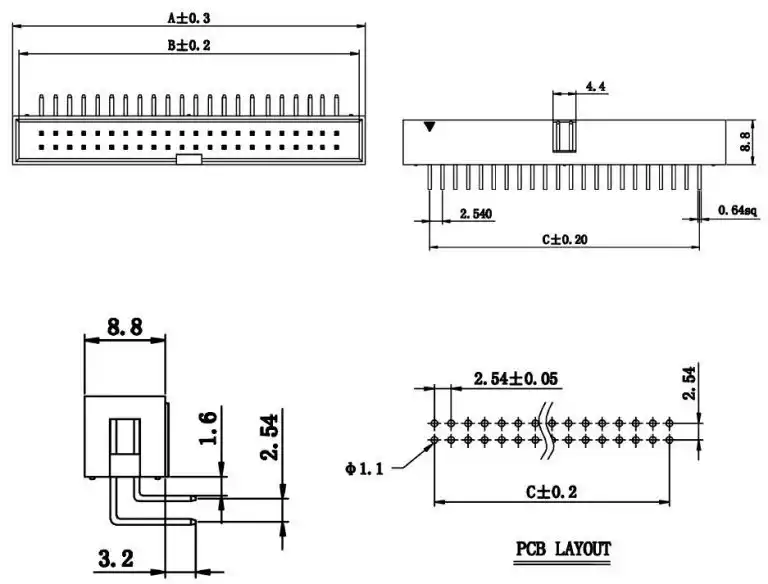

DIMENSIONS (mm)
PRODUCT SELECTION
| Part no. | Poles | Dimensions (mm) | ||
|---|---|---|---|---|
| A | B | C | ||
| MTBH06ST254 | 6 | 15.22 | 13.02 | 5.08 |
| MTBH08ST254 | 8 | 17.76 | 15.56 | 7.62 |
| MTBH10ST254 | 10 | 20.30 | 18.10 | 10.16 |
| MTBH12ST254 | 12 | 22.84 | 20.64 | 12.70 |
| MTBH14ST254 | 14 | 25.38 | 23.18 | 15.24 |
| MTBH16ST254 | 16 | 27.92 | 25.72 | 17.78 |
| MTBH18ST254 | 18 | 30.46 | 28.26 | 20.32 |
| MTBH20ST254 | 20 | 33.00 | 30.80 | 22.86 |
| MTBH24ST254 | 24 | 38.08 | 35.88 | 27.94 |
| MTBH26ST254 | 26 | 40.62 | 38.42 | 30.48 |
| MTBH30ST254 | 30 | 45.70 | 43.50 | 35.56 |
| MTBH34ST254 | 34 | 50.78 | 48.58 | 40.64 |
| MTBH40ST254 | 40 | 58.40 | 56.20 | 48.26 |
| MTBH44ST254 | 44 | 63.48 | 61.28 | 53.34 |
| MTBH50ST254 | 50 | 71.10 | 68.90 | 60.96 |
| MTBH60ST254 | 60 | 83.80 | 81.60 | 73.66 |
| MTBH64ST254 | 64 | 88.88 | 86.68 | 78.74 |
