DSUB CONNECTORS for Communications

DSUB CONNECTOR FEMALE (RIGHT ANGLED - SCREW TYPE)

Electrical Properties

  • Current Rating: 3.0 A
  • Voltage Rating: 125 V (AC)
  • Insulation Resistance: 1000 MΩ
  • Contact Resistance: ≤30 mΩ
  • Dielectric Withstanding Voltage: 1000 VAC/Min

Material Properties

  • Housing Material: PBT Glass Filled,
  • Insulator Flammability Rating: UL94 V-0
  • Contact Material: Brass or Phosphor Bronze
  • Contact Plating: Gold Plated
  • Shell: Stainless Steel SUS
  • Flammability rating: UL94 V-0
  • Terminal: Contact area Tin over Nickel Plated (Solder tail)

General Information

  • Order Code: MTDBxxPMSF
  • Durability: 500 mating cycles
  • Ambient Humidity Range: 95% R.H. (Max)
  • Type: Stamped
  • Operating Temperature: -45 up to +105 °C

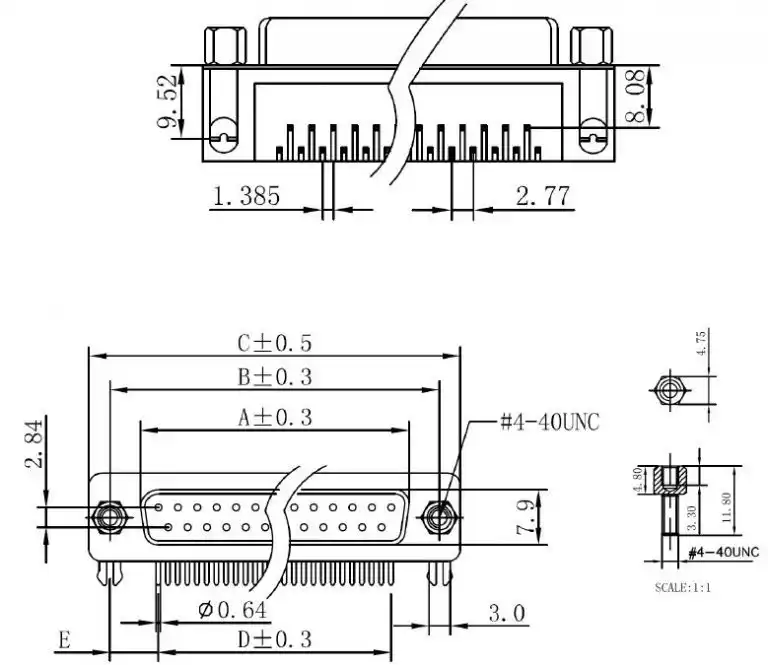

DIMENSIONS (mm)

DSUB CONNECTORS for Communications dimension
DATASHEET
D-Sub-Female-Connector

PRODUCT SELECTION

Part   no. Poles Dimensions   (mm)
A B C D E
MTDB9PMSF 9 16.33 24.99 30.81 11.08 6.955
MTDB15PMSF 15 24.66 33.32 39.14 19.39 6.965
MTDB25PMSF 25 38.38 47.04 53.04 33.24 6.9
MTDB37PMSF 37 54.84 63.5 69.32 49.86 6.82
