MTPINSST254 SERIES
STRAIGHT THT PIN HEADERS (2.54 mm)
Electrical Properties
- Rated Current: 3 A
- Working Voltage: 250 V (AC)
- Withstanding Voltage: 500 V (AC)
- Contact Resistance: 20 mΩ
- Isolation Resistance: 1000 MΩ
Material Properties
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold
- Contact Type: Stamped
General Information
- Pitch: 2.54 mm
- Rows: Single
- Type: Straight
- Packaging: Bag
- Operating Temperature: -40 up to +105 °C

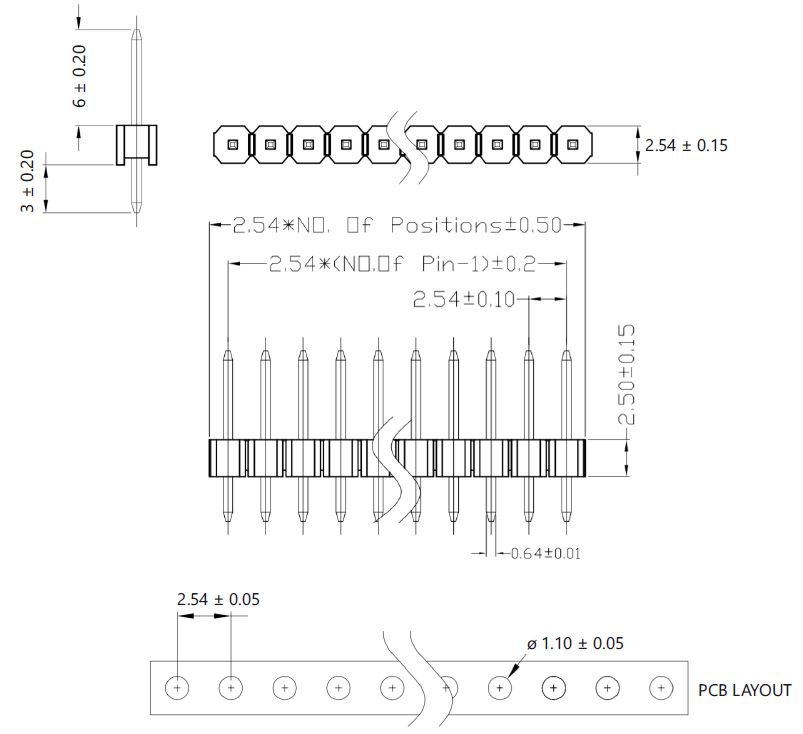

DIMENSIONS (mm)
PRODUCT SELECTION
| Order Code | Pins | Rows | Gender | Type | IR (A) | Packaging |
|---|---|---|---|---|---|---|
| MTPINSST25401 | 1 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25402 | 2 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25403 | 3 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25404 | 4 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25405 | 5 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25406 | 6 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25407 | 7 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25408 | 8 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25409 | 9 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25410 | 10 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25411 | 11 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25412 | 12 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25413 | 13 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25414 | 14 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25415 | 15 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25416 | 16 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25417 | 17 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25418 | 18 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25419 | 19 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25420 | 20 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25421 | 21 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25422 | 22 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25423 | 23 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25424 | 24 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25425 | 25 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25426 | 26 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25427 | 27 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25428 | 28 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25429 | 29 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25430 | 30 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25431 | 31 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25432 | 32 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25433 | 33 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25434 | 34 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25435 | 35 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25436 | 36 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25437 | 37 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25438 | 38 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25439 | 39 | Single | Pin Header | Straight | 3 | Bag |
| MTPINSST25440 | 40 | Single | Pin Header | Straight | 3 | Bag |
