LAN Transformers

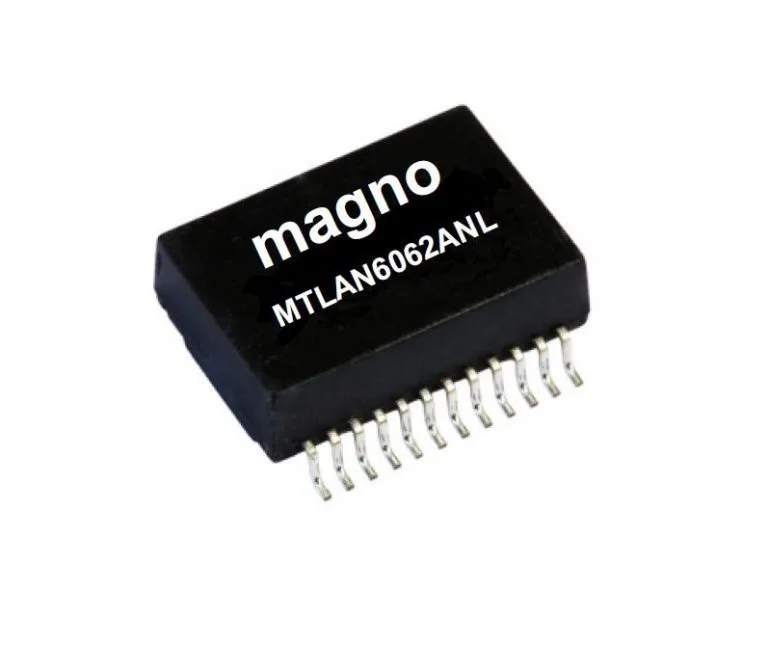

LAN Transformer Magnetic module
Features
With/Without Power Over Ethernet (PoE | PoE+)
Ports Options:
Single Port | Dual Port | Multi Port
Speed Variations:10/100 BASE-T
1000 BASE-T
10G BASE-T
Ports Options:
Single Port | Dual Port | Multi Port
Speed Variations:
Applications
- Ethernet
- Network routers
- Ethernet switches
- VDSL Digital Equipment
- Network set-top boxes
- ADSL, EPON / GPON triple play equipment
- EOC terminal, intelligence TV, PC boards and other industrial equipment
| Part No. | Datasheet | Descriprion | Mount | PoE/PoE+ | No. of Ports | Pin Count | Operating Temp. | Inductance | Width (mm) | Height (mm) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTLAN1102NL | 10/100 BASE-T Single Port | SMD | No | 1 | 16 | -40 °C to +85 °C | 350 uh | 9.3 | 5.1 | 12.8 | |
| MTLAN2019ANL | 10/100 BT; 1 Port ; POE+ | SMD | Yes | 1 | 16 | -40 °C to +85 °C | 350 uh | 9.3 | 5.75 | 12.7 | |
| MTLAN2064NL | 100 BT; Dual Port; THT LAN | THT | No | 2 | - | - | - | - | - | - | |
| MTLAN40453PNL | 10/100 B-TX Quad Ports THT | THT | No | 4 | 40 | 0 °C to +70 °C | 350 uh | 7.8 | 10.5 | 37.8 | |
| MTLAN41218PNL | 10/100 BASE-T Single Port | SMD | No | 1 | - | - | - | - | - | - | |
| MTLAN5009NL | 10/100 BT; Dual Port, PoE | SMD | Yes | 2 | 24 | 0 °C to +70 °C | 350 uh | 18.59 | 6.12 | 13.16 | |
| MTLAN6096ANL | SMD 1G BT; 1A POE+; 1 Port | SMD | Yes | 1 | 24 | -40 °C to +85 °C | 350 uh @ 20mA | 120 uh @30 mA | 16 | 6.6 | 17.7 | |
| MTLAN82440ANL | 1000 BT; Single Port LAN | SMD | No | 1 | 24 | -40 C to +85 C | 350 uh | 7.1 | 4 | 15.1 | |
| MTLAN84814ANL | 1000 BASE-T PoE+ SMD | SMD | Yes | 1 | 48 | -40 °C to +85 °C | 350 uh | 15.4 | 7 | 28 | |
| MTLAN1188NL | 10/100 BASE-T Single Port SMD | SMD | Yes | 1 | 16 | -40 °C to +85 °C | 350 uH | 9.3 | 5.1 | 12.8 | |
| MTLAN6062ANL | 1000 BASE-T Single Port SMD LAN Transformer module for PoE+ | SMD | Yes | 1 | 24 | -40 °C to +85 °C | 350 uH @20mA | 120 uh @30mA | 16 | 6.6 | 17.7 |
