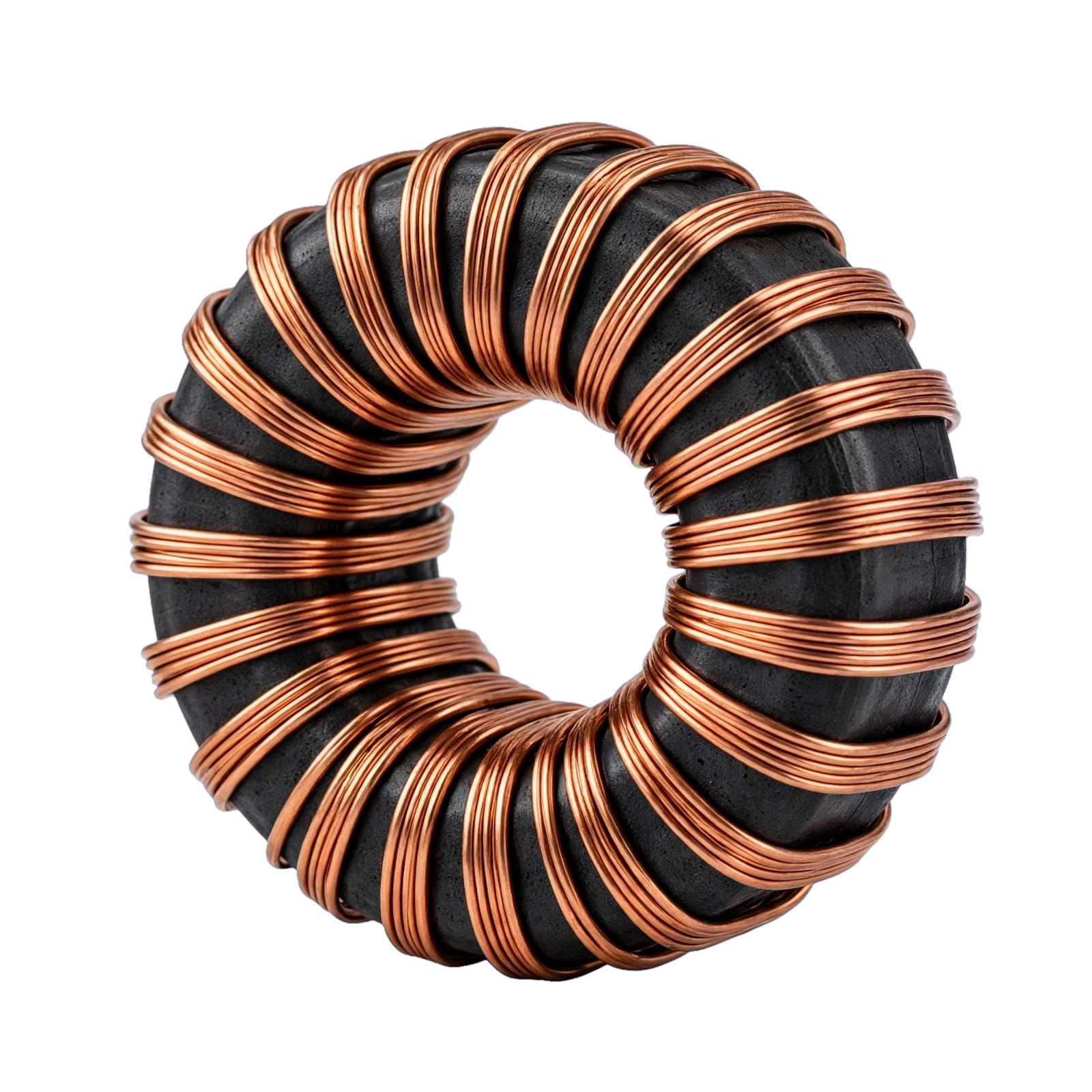

Toroidal Inductor

Reliable magnetic components for power conversion, filtering and energy storage.

✓ High Current Capability
✓ Low Magnetic Leakage
✓ Reliable Power Performance

A toroidal power inductor is a magnetic component designed to store energy and control changes in current in power electronic circuits. It uses a ring-shaped magnetic core with a conductive winding around the core. The closed magnetic path can provide efficient magnetic coupling and low external flux, making toroidal power inductors suitable for power supplies, DC-DC converters, filtering, energy storage, and EMI-related applications.

For engineers and OEMs, selecting a toroidal power inductor requires consideration of inductance, rated current, saturation current, DC resistance (DCR), operating temperature, core material, winding construction, and physical dimensions.

What Is a Toroidal Power Inductor?

A toroidal power inductor is a passive magnetic component that stores electrical energy in a magnetic field when current flows through its winding. Unlike conventional straight or open magnetic structures, a toroidal inductor uses a ring-shaped core that provides a closed magnetic path.

This construction can help contain magnetic flux within the core and can make the component suitable for applications where efficient energy storage, filtering, and controlled current behavior are required.

In simple terms:
A toroidal power inductor stores energy magnetically and resists rapid changes in current.

How Does a Toroidal Power Inductor Wo

A toroidal power inductor works by storing electrical energy in the magnetic field created when current flows through its winding. Its ring-shaped magnetic core provides a closed magnetic path, which helps improve inductance and reduce electromagnetic interference. When current changes, the toroidal inductor opposes the change in current and releases stored energy back into the circuit. This working principle makes toroidal power inductors useful in DC-DC converters, power supplies, filters, energy-storage circuits, and power management applications

Step 1

Current Flows Through the Winding

When electrical current passes through the copper winding of a power inductor, it creates a magnetic field around the conductor. The number of winding turns, amount of current, wire size, and core material influence the strength of this magnetic field. As current increases, the magnetic field also increases until the core approaches its saturation limit. This relationship between current and magnetic field is fundamental to how a toroidal power inductor stores and transfers energy in electronic circuits.

Step 2

Magnetic Flux Forms in the Core

The toroidal core provides a continuous and closed magnetic path for the magnetic flux generated by the winding. Because the core has a ring-shaped construction, most of the magnetic flux remains concentrated within the core instead of spreading into the surrounding space. This efficient magnetic path helps the inductor achieve useful inductance while reducing external magnetic leakage. Whether sourcing components from a reliable power inductor manufacturer or evaluating options like a drum core inductor, core materials can be selected according to the required frequency, inductance, current rating, and application.

Step 3

Energy Is Stored

As current flows through the winding, energy is stored in the magnetic field established around and within the toroidal core. The amount of stored energy depends mainly on the inductance and the current flowing through the component, with higher inductance and current allowing greater energy storage within the component's operating limits. To understand more about the underlying principles, you can explore how does a power inductor work. When used in power conversion circuits, the inductor can temporarily store energy and release it when required, making it valuable for power supply applications, filtering, and smoothing.

Step 4

The Inductor Opposes Current Changes

A toroidal power inductor naturally opposes rapid changes in current by generating a voltage that counteracts the change. This electrical behavior allows the component to control current variations and reduce unwanted ripple and noise. In modern switching power supplies, SMD power inductors, and DC-DC converters, the inductor repeatedly stores and releases energy as the switching current changes, ensuring efficient power conversion and ripple reduction.

Toroidal Power Inductor Construction

An anatomical breakdown of the core materials, windings, and structural elements that power modern electronic circuits.

Core Component 01

Toroidal Magnetic Core

The main structural element providing a continuous path for magnetic flux. When sourcing from a trusted power inductor manufacturer or evaluating alternatives like a drum core inductor, ferrite and other core materials are chosen based on frequency, inductance, and core losses.

Core Component 02

Copper Winding

Wrapped around the core to carry current and generate the operating magnetic field. To better understand how does a power inductor work in a circuit, consider that the number of turns controls inductance, while wire gauge and construction dictate current handling and DC resistance (DCR).

Core Component 03

Insulation

Separates winding turns and provides electrical isolation between the copper, core, and conductive surfaces. Essential for reliable power supply applications, it prevents short circuits and breakdown while withstanding application voltages and temperatures to ensure long-term stability.

Core Component 04

Terminals

Provide the electrical and mechanical bridge between a high-quality power inductor and the PCB. Sized and spaced for secure mounting, robust SMD power inductors and terminals are critical for DC-DC converters and high-current uses.

Toroidal Power Inductor Specifications

Specification	Why It Matters
Inductance	Determines the component’s ability to oppose current changes
Inductance tolerance	Defines the permitted variation from nominal inductance
Rated current	Indicates the intended continuous current capability
Saturation current	Indicates when inductance begins to decrease significantly
DCR	Indicates winding resistance and associated copper losses
Operating temperature	Defines the permitted temperature range
Core material	Influences magnetic performance and losses
Dimensions	Determines available PCB or mechanical space
Winding construction	Affects current handling, losses, and reliability

Inductance and Inductance Tolerance

Inductance is one of the most important parameters of a toroidal power inductor. It determines how strongly the component opposes changes in current and how much magnetic energy can be stored.

The required inductance depends on the circuit topology, switching frequency, operating current, ripple-current requirement, and application.

Inductance tolerance specifies how much the actual inductance can differ from its nominal value.

For power applications, the inductance should be evaluated under the actual operating conditions rather than relying only on the nominal value.

Rated Current and Saturation Current

Rated current represents the current level at which the toroidal power inductor can operate under specified conditions.

Saturation current relates to the reduction in inductance as the magnetic core approaches saturation.

These specifications are important in applications with high or rapidly changing current.

A suitable toroidal power inductor should provide adequate current capability without excessive temperature rise or unacceptable inductance reduction.

DC Resistance (DCR)

DC resistance (DCR) is the resistance of the inductor winding when measured with direct current.
Lower DCR generally means lower copper losses and reduced voltage drop during operation.
For high-current applications, DCR is particularly important because winding losses increase with current.

Core Material and Magnetic Performance

The magnetic core material influences the electrical characteristics of a toroidal power inductor.

Important factors include:

Magnetic permeability
Saturation behavior
Core losses
Operating frequency
Temperature characteristics
Energy-storage capability

The core material should therefore be selected according to the intended power-electronic application rather than simply choosing the highest inductance value.

Advantages of Toroidal Power Inductors

Toroidal construction can provide several useful characteristics:

Closed magnetic flux path
Reduced external magnetic leakage
Efficient magnetic coupling
Compact magnetic structure
Suitable for energy storage
Useful for filtering and power conversion
Suitable for various power-electronic applications

Actual performance depends on core material, winding design, operating frequency, current, and construction.

Toroidal Power Inductor Applications

Power Supplies

Toroidal power inductors can be used in power supply circuits for filtering and energy storage. They are designed to maintain steady performance across various manufacturer standards.

DC-DC Converters

They can be used in switching converter circuits where the inductor stores and transfers energy during switching cycles. Learn more about Power Inductor for DC-DC Converters.

EMI and Noise Filtering

Toroidal magnetic components can be used in filtering applications where control of unwanted electrical noise is required, comparable to features found in drum core inductor specifications.

Energy Storage

The magnetic field of the inductor allows energy to be stored and released as required by the circuit. To dive deeper into the fundamentals, check out What Is a Power Inductor? and How Does a Power Inductor Work?.

Power Electronics

Toroidal power inductors can be used in industrial and electronic power-management systems requiring current filtering or energy storage. Explore solutions from a leading SMD power inductor manufacturer.

Toroidal Power Inductor vs Drum Core Inductor

Feature	Toroidal Power Inductor	Drum Core Inductor
Core shape	Ring-shaped	Drum-shaped
Magnetic path	Generally closed	Depends on construction
Magnetic leakage	Generally low	Can be higher depending on design
Typical applications	Filtering, energy storage, power conversion	Power conversion and filtering
Construction	Winding around toroidal core	Winding around drum-shaped core
Mounting	Depends on design	THT and SMD options available

How to Select the Right Toroidal Power Inductor

Selecting the right toroidal power inductor depends on the electrical, thermal, and mechanical requirements of the application. Engineers should consider inductance value, rated current, saturation current, DC resistance (DCR), operating frequency, temperature range, physical dimensions, and mounting requirements. The correct combination of these parameters helps ensure efficient energy storage, lower power losses, stable filtering, and reliable operation in power supplies, DC-DC converters, and other power-management circuits.

Phase 01

Determine the Required Inductance

Choose the inductance value according to the circuit's operating requirements. Depends on switching frequency, voltages, load current, and ripple current to store energy and maintain stable current flow. Learn more about how a power inductor works to optimize your design.

Phase 02

Check Rated and Saturation Current

Ensure the power inductor manufacturer specifications safely handle operating current without excessive heating or inductance drop. Rated current tracks continuous capability, while saturation current marks significant inductance reduction thresholds, often detailed in drum core inductor specifications.

Phase 03

Consider DC Resistance (DCR)

Evaluate copper winding resistance affecting power loss and temperature rise. Lower DCR minimizes $I^2R$ losses, boosting efficiency in high-current applications.

Phase 04

Check Operating Frequency

Align circuit operating frequency with core material and design characteristics. Core and winding losses shift with frequency; match the range for stable and efficient conversion across various SMD power inductor manufacturer guidelines.

Phase 05

Consider Temperature & Thermal Performance

Account for core loss and resistance changes under self-heating. Check ambient temperature range, temperature rise limits, and current derating curves for sustained reliability.

Phase 06

Check Size and Mounting Requirements

Confirm physical dimensions match assembly constraints. Verify outer/inner diameters, height, terminal configuration, and PCB footprints to avoid component interference.

Phase 07

Match the Inductor to the Application

Select the appropriate magnetic components whether you need a shielded power inductor for power supply units or specialized designs for power inductors for DC-DC converters. Weigh complete electrical and mechanical traits over isolated inductance targets.

Toroidal Power Inductor Specification Table

MTTIV161408 Series Toroidal Inductors

Features

Low DC resistance
Toroidal Construction
High Temperature stability
Suitable for wave soldering
Operating temperature: -25°C to +105°C

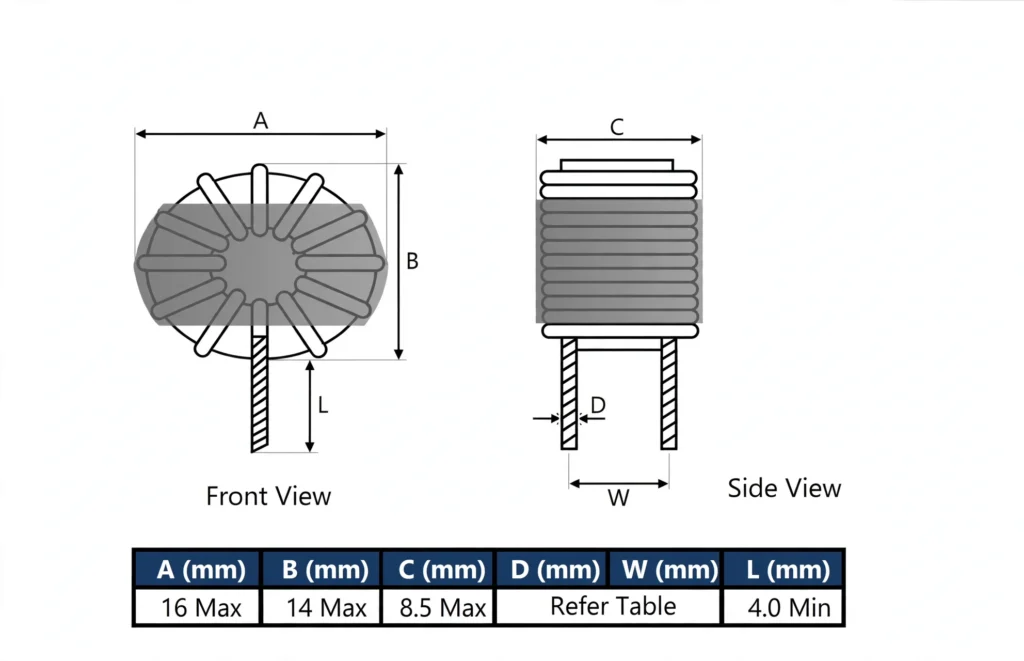

Front View: A = 16mm Max, B = 14mm Max, L = 4.0mm Min (lead length)
Side View: C = 8.5mm Max (width), D = Wire dia (Refer Table), W = Lead spacing (Refer Table)

Electrical Specifications

Part Number	Inductance (μH)	Tolerance	DCR (mΩ) Max.	Rated Current (A) ΔT ∼ 40°C	D (mm)	W (mm)
MTTIV1614084R7	4.7	± 20%	7.5	10	0.8 ± 0.05	5.0 Ref
MTTIV1614086R8	6.8	± 20%	8	10	0.8 ± 0.05	5.0 Ref
MTTIV161408100	10	± 20%	10	9	0.8 ± 0.05	5.0 Ref
MTTIV161408220	22	± 20%	15	7	0.8 ± 0.05	5.0 Ref
MTTIV161408330	33	± 20%	30	6	0.7 ± 0.05	5.0 Ref
MTTIV161408470	47	± 20%	35	4	0.55 ± 0.05	5.0 Ref
MTTIV161408560	56	± 20%	40	4	0.55 ± 0.05	5.0 Ref
MTTIV161408680	68	± 20%	45	3.5	0.55 ± 0.05	5.0 Ref
MTTIV161408101	100	± 20%	70	3	0.5 ± 0.05	5.0 Ref

Why Choose Magno Teknik Toroidal Power Inductors?

Magno Teknik develops magnetic components for electronic and power applications, with product selection based on electrical, mechanical, and application requirements.

For OEMs, engineers, and procurement teams, component selection should consider the required inductance, current capability, DCR, temperature range, dimensions, and application-specific requirements.

Toroidal Power Inductors - FAQ

Frequently Asked Questions

What is a toroidal power inductor?

A toroidal power inductor is a magnetic component with a ring-shaped core and winding designed to store magnetic energy and control changes in current in power electronic circuits. To understand the basic operating principle of inductors, see our guide on What Is a Power Inductor?.

What are toroidal power inductors used for?

Toroidal power inductors are commonly used for power conversion, filtering, energy storage, power supplies, DC-DC converters, and EMI-related applications. Their closed magnetic path makes them suitable for applications where efficient magnetic energy storage and controlled current flow are required.

What are the advantages of a toroidal power inductor?

A toroidal construction provides a closed magnetic path that can help reduce external magnetic leakage and provide efficient magnetic coupling. Depending on the design, toroidal power inductors can also offer good energy-storage capability and compact magnetic construction for power electronics applications.

How do I select a toroidal power inductor?

Consider inductance, rated current, saturation current, DCR, operating temperature, core material, dimensions, and switching frequency when selecting a toroidal power inductor. You should also match the component specifications with the requirements of the target circuit and application.

What is the difference between inductance and saturation current?

Inductance describes the component's ability to oppose changes in current and store energy in its magnetic field, while saturation current indicates the current level at which the magnetic core begins to saturate and inductance decreases significantly. For a broader explanation of inductor operation, see How Does a Power Inductor Work?.

Can a toroidal power inductor be used in a DC-DC converter?

Yes. A toroidal power inductor can be used in a DC-DC converter for energy storage and current control when its inductance, current rating, saturation characteristics, DCR, and thermal performance meet the converter requirements. Learn more in our guide to Power Inductor for DC-DC Converters.

What does DCR mean in a toroidal power inductor?

DCR means DC resistance. It represents the resistance of the copper winding and is an important specification because it contributes to copper losses, voltage drop, and temperature rise. A lower DCR can be particularly important in high-current power applications.

What is the difference between a toroidal power inductor and a drum core inductor?

The main difference is the core and winding construction. A toroidal inductor uses a ring-shaped core with the winding distributed around it, while a drum core inductor uses a drum-shaped magnetic core with its winding around the central section. The choice depends on inductance, current, size, shielding, and application requirements. See our Drum Core Inductor guide for a detailed comparison.

Is a toroidal power inductor suitable for power supplies?

Yes. Toroidal power inductors can be used in power supplies, filtering circuits, energy-storage stages, and power conversion systems. The correct component should be selected according to the required inductance, current, frequency, DCR, temperature range, and physical dimensions.

Where can I find toroidal power inductor specifications?

Detailed specifications should be checked in the manufacturer's datasheet. Important parameters include inductance, tolerance, rated current, saturation current, DCR, operating temperature, dimensions, and mounting details. For broader product information, you can also explore Power Inductor Manufacturer.
